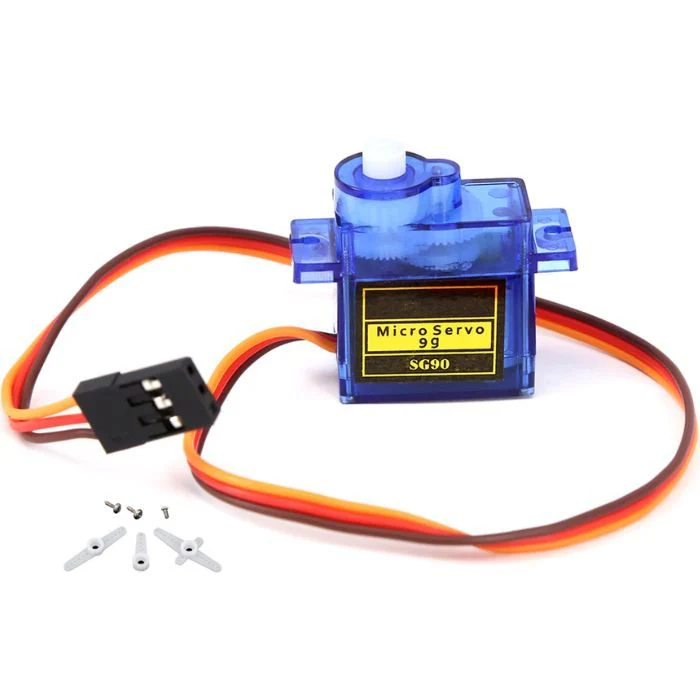

TowerPro SG90 Servo Motor (180? Rotation)-Good Quality

SKU 10006 Category

1 in stock

Model: SG90
Weight: 9 gm
Operating voltage: 3.0V~ 7.2V
Servo Plug: JR
Stall torque @4.8V : 1.2kg-cm
Stall torque @6.6V : 1.6kg-cm

130.00 140.00

1 in stock

TowerPro Servo Motors are optimum-quality and affordable cost servos.! They are suitable for a wide range of applications, including RC aircraft, automobiles, and robotics, Or just to have some fun with whatever crazy project you’re working on.

When you purchase TowerPro motors in India, they are almost usually NOT ORIGINAL, and these are no exception… These are NOT ORIGINAL Tower Pro Servos, either. However, they are dead cheap and Serve the purpose. We put them to the test and found them to be of good quality for the price.
Wire Description:

RED – Positive
Brown – Negative
Orange – Signal

We have imported this copy of original TowerPro SG90 9g Mini Servo from our trusted supplier. This good quality servo motor is in very close competition to the original TowerPro SG90 1.2kgCm 180-degree servo motor.

Main Difference between Good Quality SG90 and Standard Quality Sg90 is

Property
Good Quality (SKU:- 43849)
Standard Quality (SKU:- 5764)

Cable
Thick
Thin

Gears
Nylon
PolyPropelene Plastic

Motor
High torque
Slightly Lower Torque



Features :

High resolution
Accurate positioning
Fast control response
Constant torque throughout the servo travel range
Excellent holding power

Package Includes :
1 x TowerPro SG90 9g Mini Servo Motor with Cable

1 x Set of Horns

One Point
Two Point
Four Point

1 x Set of Screws

SKU: 10006 Category:
Weight 0.014 kg
Dimensions 8 × 6 × 4 cm

Item Type: TowerPro Servo Motor Model Series: SG Series Rotation (Degree): 180 Torque Rating (kg-cm): 1.2 to 1.6 Model No.: SG90 Operating Voltage (VDC): 3.0 ~ 7.2 Operating Speed @4.8V 0.10sec/60° Stall Torque @ 4.8V (Kg-Cm) 1.2 Stall Torque @6.6V (Kg-Cm) 1.6 Operating Temperature (°C): -30 to 60 Gear Type Glass Fiber Servo Plug Type JR Cable Length (cm): 25 Length (mm): 22.8 Width (mm): 12.6 Height (mm): 34.5 Weight (g): 9 Shipping Weight 0.014 kg Shipping Dimensions 8 × 6 × 4 cm
