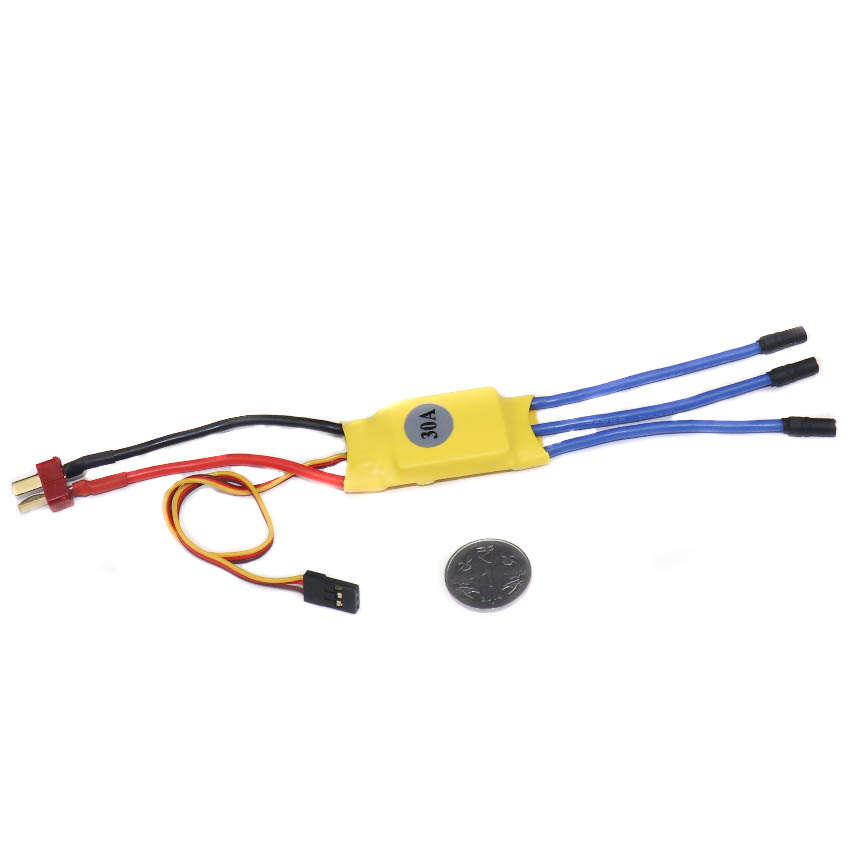

Standard 30A BLDC ESC Electronic Speed Controller with Connector
Out of stock
Constant Current: 30A (Max 40A<10s).
BEC: 5V 3A.
Input Voltage: 11.1 ~ 11.7 V.
Li-Po battery: 2S ~ 3S.
Ni-MH 4-10 CELLS Auto Detect.
₹320.00
Out of stock
Standard BLDC 30 amp ESC Electronic Speed Controller with Connector is specifically made for quadcopters and multi-rotors. It provides faster and better motor speed control giving better flight performance compared to other available ESCs.
STANDARD 30 amp ESC Electronic Speed Controller can drive motors that consume up to 30A current. It works on 2-3S LiPo batteries. The onboard BEC provides regulated 5V(2A max draw) to power the flight controller and other onboard modules. This is useful to control our brushless motors with a 2-3S LiPo (make sure the motor doesn’t draw more than 30A).
ESC CONNECTORS:
Battery Side – Male Deans ( T ) Connector.
Motor Side – Female 3.5mm Gold Connector.
Features:
This 30 amp ESC for BLDC has onboard BEC
This ESC comes with a male dean T-connector
Auto Low BATTERY Slow down at 3.0V/cell Lipo, cut-off at 2.9V/cell lipo
APPLICATION: Multirotors, Rc Airplanes, etc
Package Includes:
1 x Standard 30A BLDC ESC Electronic Speed Controller with Connectors
| Weight | 0.9 kg |
|---|---|
| Dimensions | 10 × 10 × 5 cm |
Item Type: Brushless ESC Model Name Standard 30A BLDC ESC Burst Current (A) 40 Constant Current (A) 30 BEC (Y/N): (5V/3A), Yes Compatible LiPO Batteries: 2 to 3S Color: Random Application BLDC Motors, Multirotors, Rc Planes etc. Length (mm): 45 Width (mm): 24 Height (mm): 9 Weight (g): 23 Shipping Weight 0.027 kg Shipping Dimensions 10 × 10 × 5 cm
