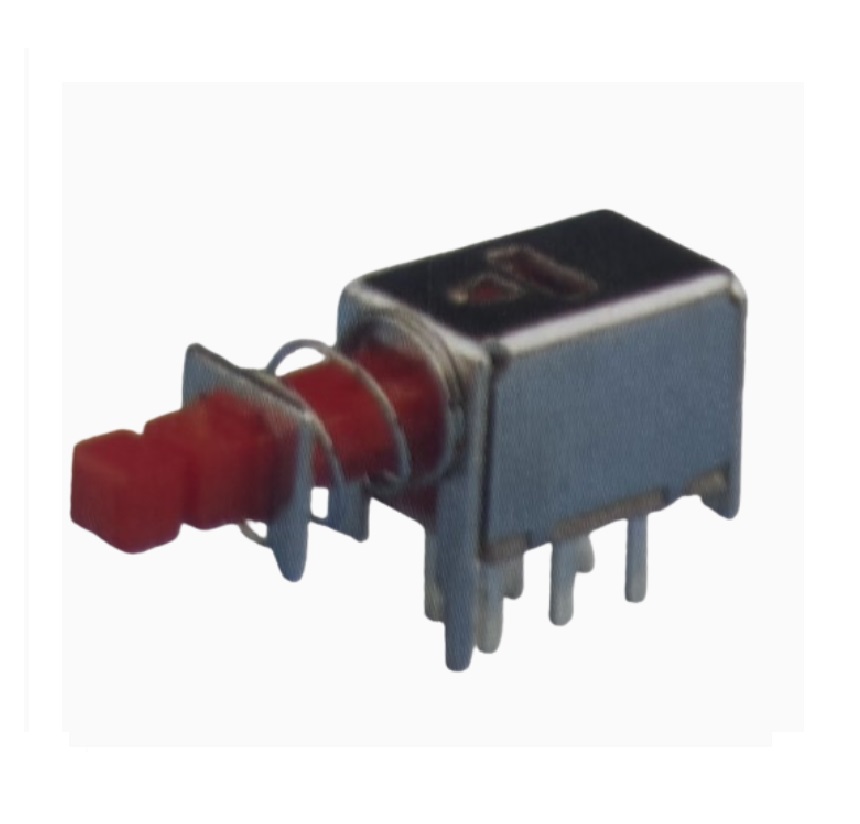

A03 POWER SWITCH-A03-09
A03 POWER SWITCH-A03-09 - Image 2

A03 POWER SWITCH-A03-09

Availability:

1 in stock
  1. MPN: A03-02
  2. Temperature: -25 to 55 degc
  3. Rated voltage: 30VDC
  4. Rated current: 0.3A
  5. Contact resistance: <=0.02 ohm
  6. Insulation resistance: >=500Mohm
  7. withstand voltage: AC 800V(50Hz)/min
  8. Actuating force: 2 to 8N
  9. life: 100000 cycles

₹13.00 ₹16.00

1 in stock

The A03 POWER SWITCH-A03-09 is a compact and reliable power switch designed for electronic applications. Featuring a straightforward on/off mechanism, it provides ease of use and convenience. Its durable construction ensures longevity and stability in powering various devices. The A03-09 model is a dependable choice for controlling the power supply in electronic circuits and projects with simplicity and efficiency.

Note: There might be color diffrence in actual product.

Features:

  1. Space-efficient switch.
  2. Simple on/off mechanism.
  3. Sturdy construction.
  4. Provides reliable power supply management.

Package Includes:

1 x A03 POWER SWITCH-A03-09

SKU: 10070 Category:
Weight 0.09 kg
Dimensions 5 × 4 × 2 cm
Manufacturer: JDH
Voltage Rating (V): 30
Operating Temperature (°C): -25 to 55
Rated Voltage (V): 30 DC
Rated Current (A): 0.3
Insulation Resistance (MOhm) >=500
Withstand Voltage AC 800V(50Hz)/min
Lifespan 100000 cycles
Shipping Weight 0.009 kg
Shipping Dimensions 5 × 4 × 2 cm
