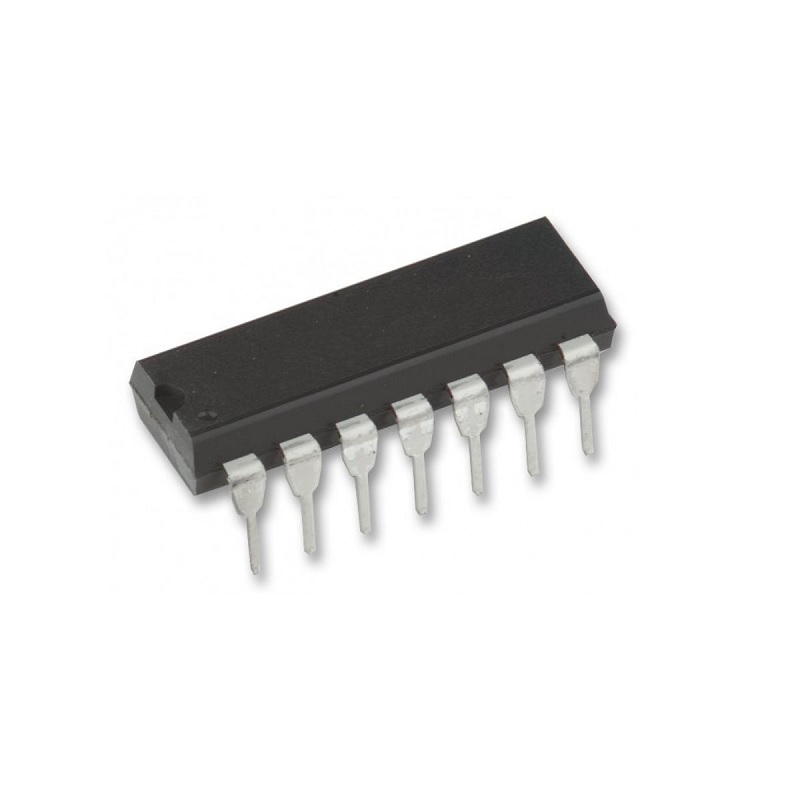

74LS27 Triple 3-input NOR Gate IC (7427 IC) DIP-14 Package
Out of stock
IC Name: 74LS27
Package/Case: DIP-14
Operating Voltage: 5V
Operating Current: 26 µA
Temperature Range: 0°C to +70°C
₹39.00 ₹40.00
Out of stock
The 74LS27 Triple 3-input NOR is a Triple 3-input NOR Gate IC designed to provide reliable logic operations in various electronic applications. This IC contains three independent 3-input NOR gates, each capable of handling TTL inputs and providing TTL outputs. It’s is known for its high-speed, low-power TTL logic gates. The IC operates within the standard voltage range of 5V and is suitable for use in a variety of TTL-based systems.
Note:
Product Images are shown for illustrative purposes only and may differ from the actual product.
For Technical Specifications about the IC go through the Datasheet in the Attachment section.
Features :
Triple 3-input NOR Gates: Provides three independent NOR gates in a single IC.
TTL Input and Output: Ensures compatibility with TTL logic circuits.
Fast Propagation Delay: 15 ns typical delay.
Low Power Consumption: Operating supply current of 26 µA.
Wide Operating Temperature Range: 0°C to +70°C
Package Includes:
1 x 74LS27 Triple 3-input NOR Gate IC (7427 IC) DIP-14 Package
| Weight | 0.001 kg |
|---|---|
| Dimensions | 4 × 4 × 1 cm |
IC Type: Gate IC Gate IC Type: NOR Model Name 74LS27 Case/Package: DIP 14 Operating Temperature (°C): 0°C to +70°C Operating Current (A): 26 µA Operating Voltage 5V Shipping Weight 0.001 kg Shipping Dimensions 4 × 4 × 1 cm
