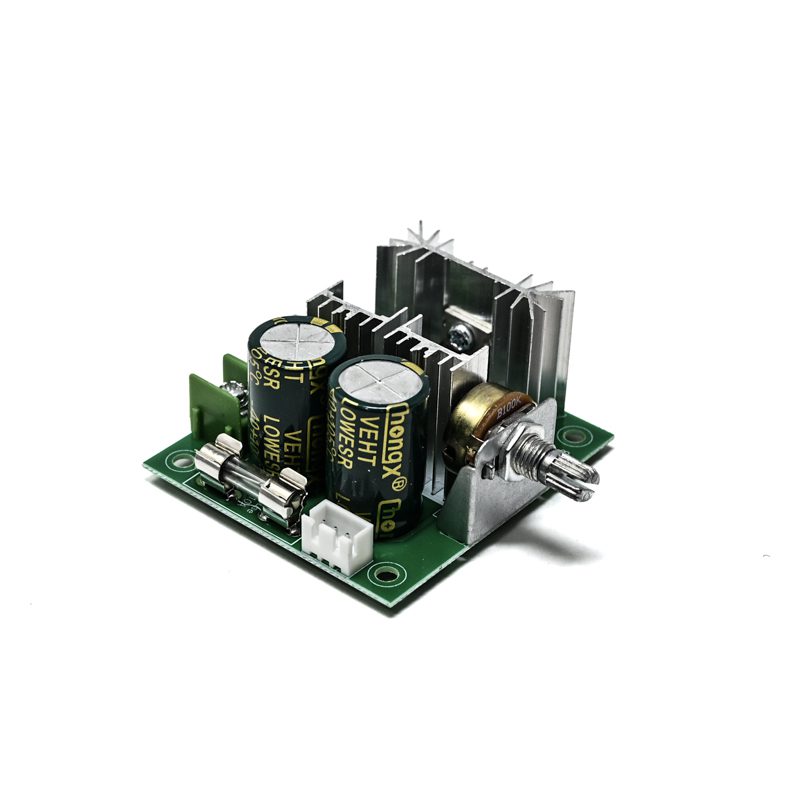

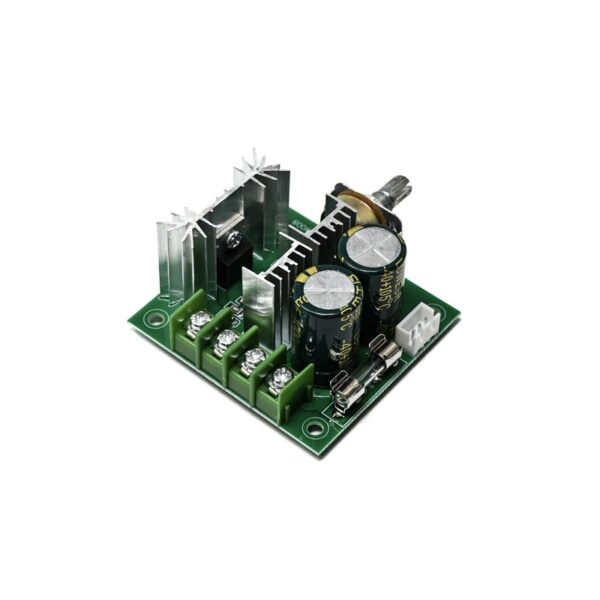

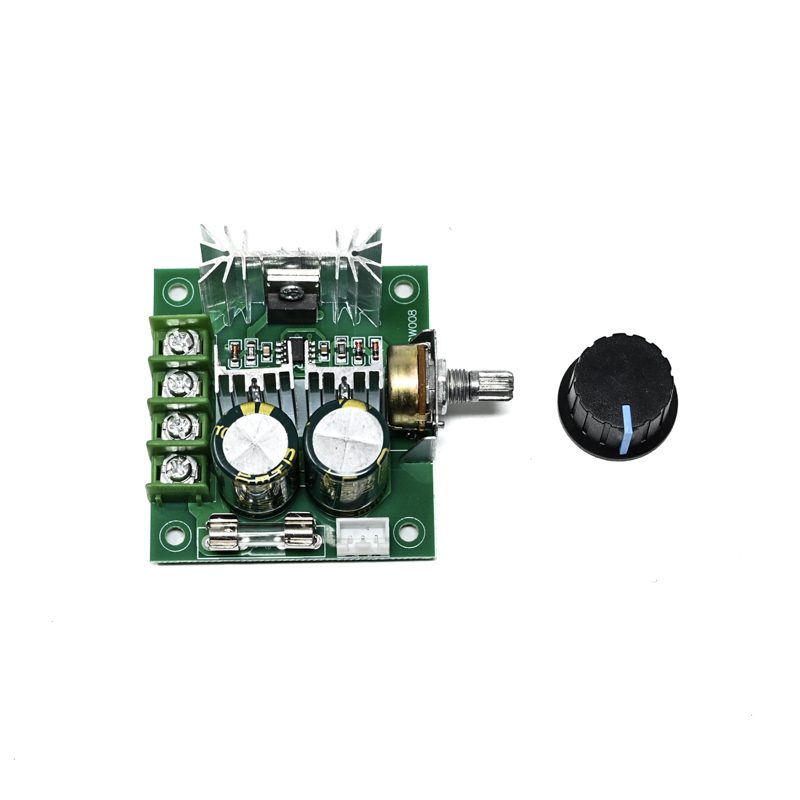

12V-40V10A DC Motor PWM Speed Control Switch Governor

The DC Motor Speed Controller allows controlling the speed of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of the power supply and control voltage over-voltage protection function.

Note:

This can NOT be used to the BRUSHLESS motor. The controller is NOT reverse-polarity protected and will be damaged if it connects the supply voltage with the wrong polarity.

Features:

1. Control the speed of a DC motor with this controller.
2. High efficiency, high torque, low heat generating.
3. With reverse polarity protection, high current protection.
4. Control voltage over-voltage protection function
5. The overload and short circuit protecting current is 10A
6. Working Voltage: DC 12V – DC 40V.
7. Control Power:0.01 – 400W.
8. Static Current:0.02 A ( Standby ).
9. PWM Duty Cycle:10% -100%.

Package Includes:

1 x 12V-40V10A DC Motor PWM Speed Control Switch Governor
