1.8V ? 12V/2A DC Motor PWM Speed Regulator

SKU 10050 Category Tags ,

₹68.00 ₹80.00

Out of stock

  • 100% Genuine Quality Products
  • Free Shipping Over ₹999 | Easy Returns | Instant Dispatch | Get Tracking On Whattsapp and Website
  • Normal Delivery Non Metro Cities : 5-7 Days
  • Express Delivery Metro Cities : 3-4 Days
  • All Product Shipped From Pune Warehouse
  • 11am to 8pm Available Customer Chat Support

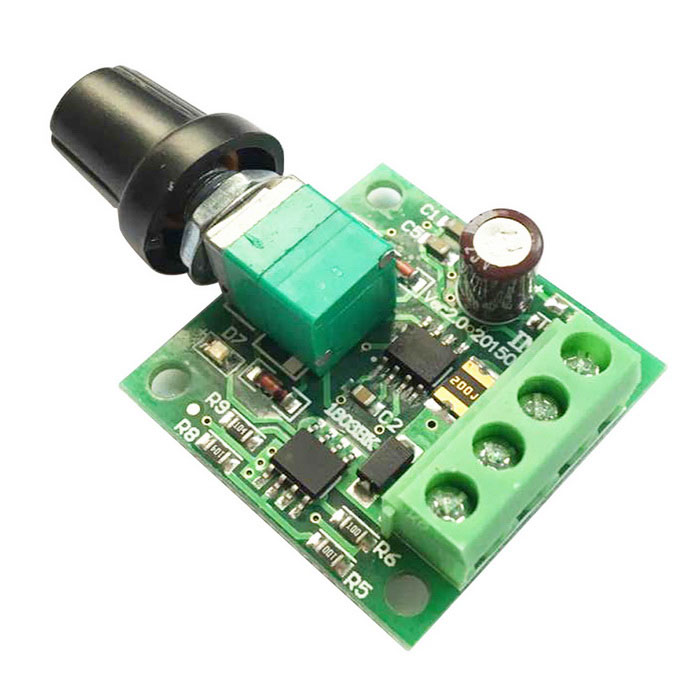

This is a 1.8V ? 12V/2A DC Motor PWM Speed Regulator.

The DC Motor PWM Speed Regulator 1.8V, 3V, 5V, 6V, 12V-2A speed control switch function for DC Motors allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%.The motor speed controller can easily provide a continuous current of 2A to your DC motor or other DC load.

With a resettable fuse, it can automatically break the connection and automatically recover. With a LED indicator and a rotary switch, convenient to use.

Operating instruction:
1. Connect your DC motor (or DC load) to the motor terminals
2. Connect a voltage of 1.8V-15V DC to the circuit making sure of the correct polarity of the connection. Note that the voltage applied to the motor will be the supply voltage applied to the circuit.
3. You can now control the speed of the motor through the potentiometer.

SKU: 10050 Category: Tags: ,
Weight 0.02 kg
Dimensions 6 × 4 × 1 cm

Item Type: PWM Speed Regulator Current Rating (A): 2 Voltage Rating (V): 1.8 to 12 Output Current (A): 2A(Max). Duty Cycle Adjustable (%) 5%-100% Diameter of PCB holes 3mm Pitch Terminal Block (mm) 5.08mm Weight (g): 16 Shipping Weight 0.02 kg Shipping Dimensions 6 × 4 × 1 cm
